Products by Series

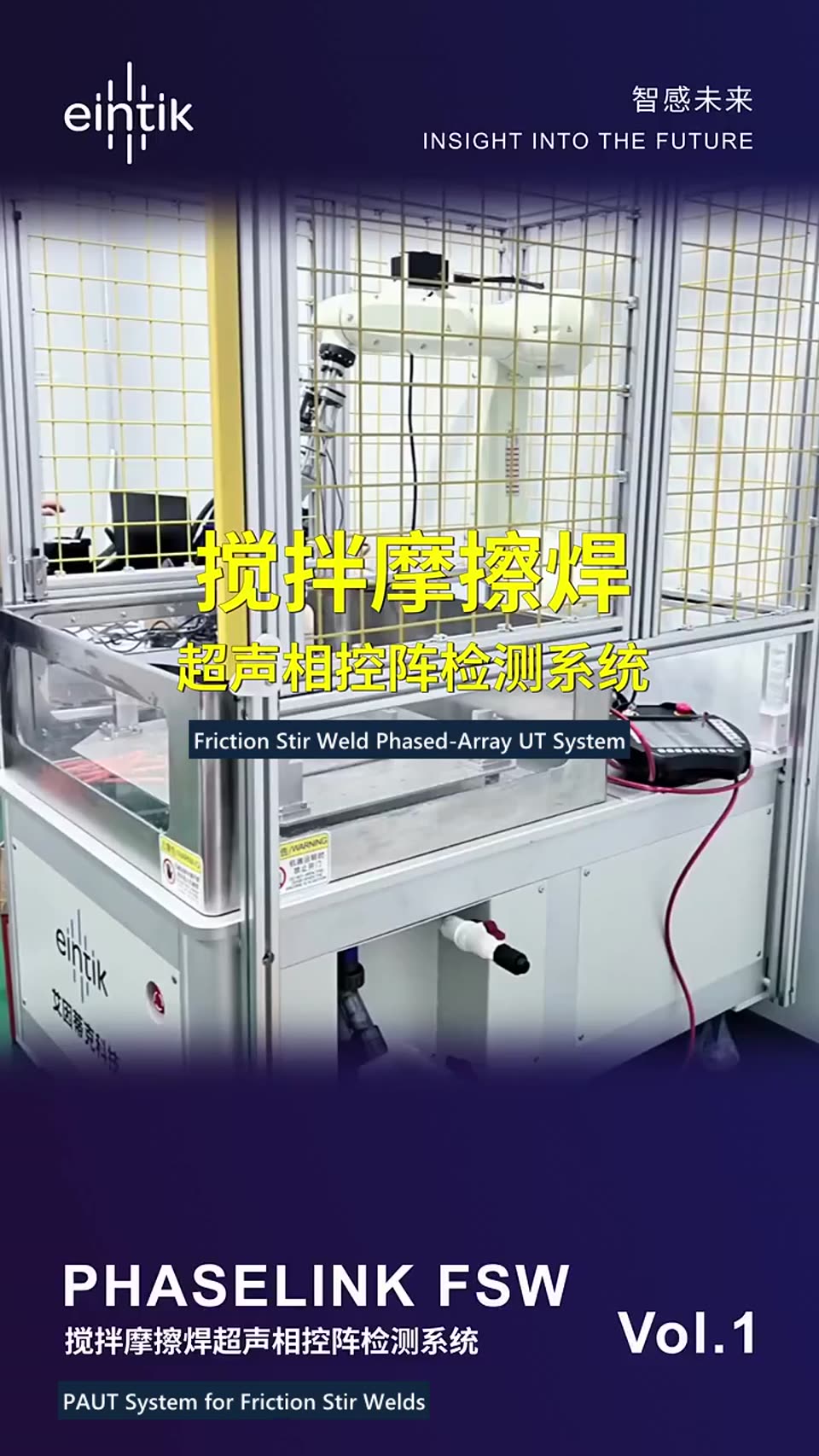

Automated PAUT Platform

PHASELINK

A scalable phased array integration platform for automated ultrasonic inspection systems.

• Multi-host and multi-group system architecture
• PAUT, FMC, TFM and immersion C-scan workflows
• Automation interfaces and SDK integration
• Seven English product and application videos

Instrument Series

PhaseEye

Dedicated phased array flaw detector family organized by specific models.

• PHASEYE FMC-64 / 64:128PR
• PHASEYE 32:128PR and 32:64PR
• PHASEYE S 16:128PR and 16:64PR
• Matching probes, wedges, scanners and software support available on request

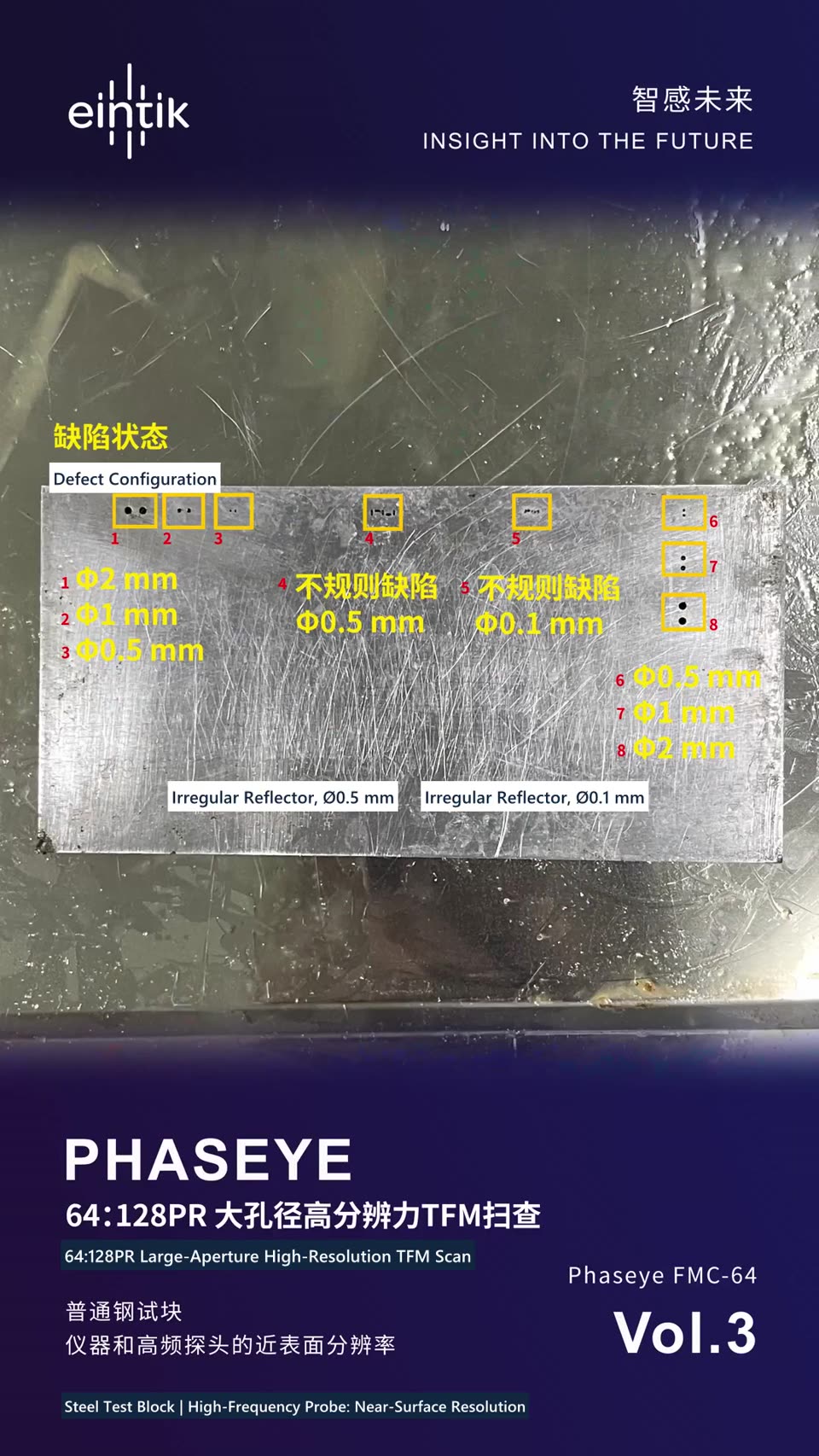

64:128PR Instrument

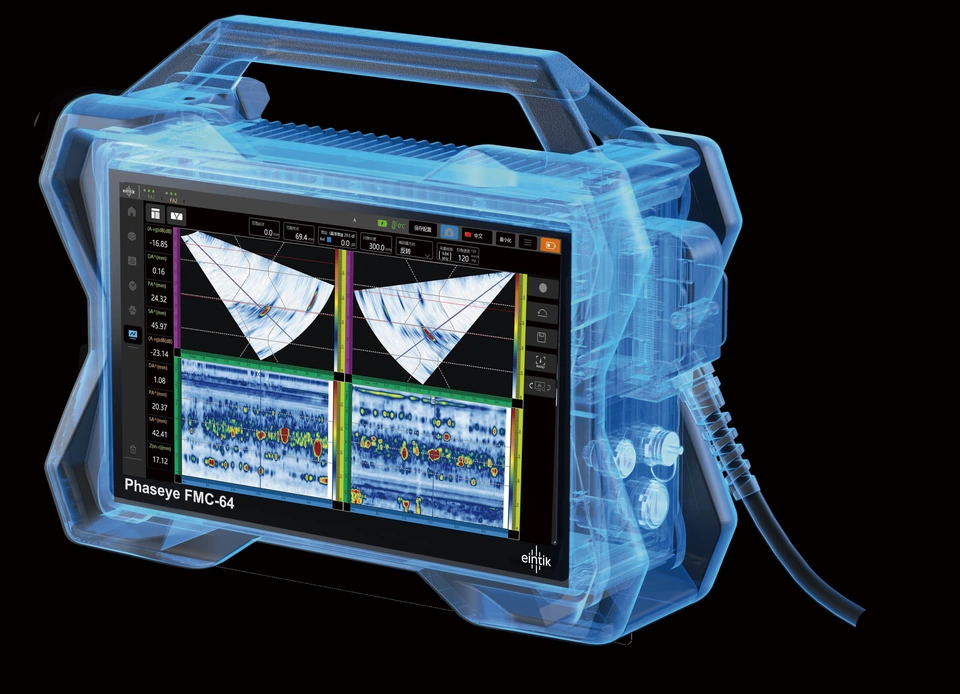

PHASEYE FMC-64

Advanced portable PAUT platform for real-time FMC, TFM, PWI, PCI and 3D imaging workflows.

• 64:128PR large-aperture configuration
• Simultaneous PAUT and TFM inspection
• Multi-group and multi-mode full-focusing imaging
• Six English product demonstration videos

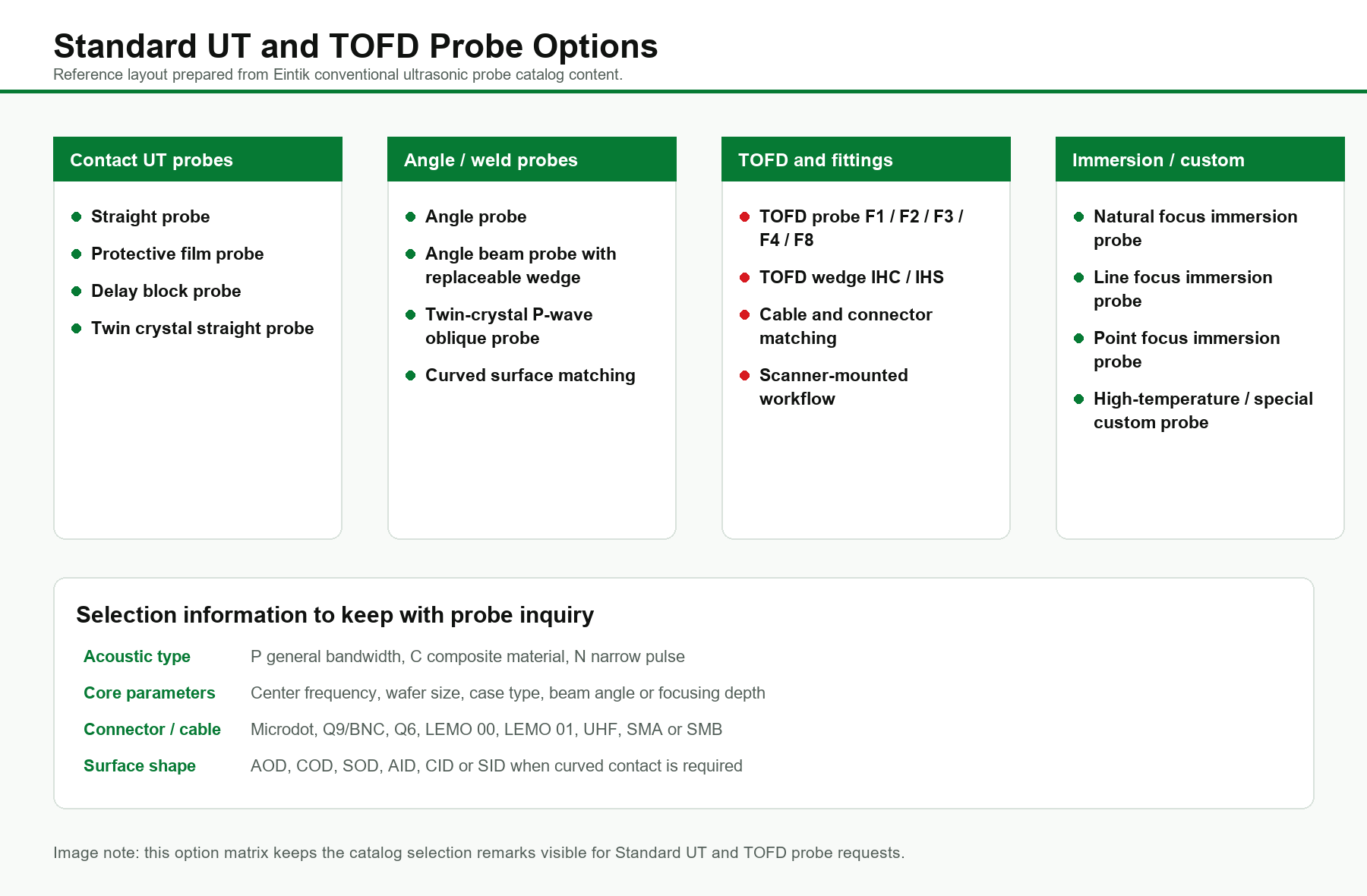

Probe Series

PAUT, UT and TOFD Probes

Probe requirements organized by inspection method and product family.

• PAUT probes: Minimal Case, Small Shell, Medium Shell and Large Shell series
• UT probes: straight, angle, angle beam, twin crystal, protective film, delay block and immersion probe options
• TOFD probes: F-series probes for manual and automated weld inspection workflows
• AUT and custom probes: application-specific array, housing, cable and connector configurations

Warranty: One-year quality warranty from delivery, for factory defect only.

Wedge Series

Wedges

Standard and custom wedges arranged by refraction angle, wave mode, workpiece surface, mounting option and wedge material.

• PAUT wedge matching and geometry drawings
• TOFD IHC / IHS wedge matching
• AOD / COD surface direction and S / A / C / X type codes

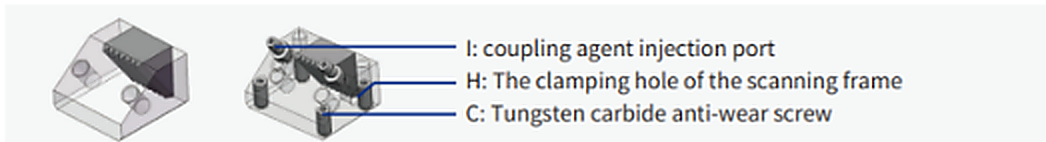

• IH / IHS / HS mounting, water injection and custom material options

Warranty: Three-month warranty with free replacement for confirmed factory defect only.

Industrial Scanner Series

Industrial Scanners

Encoded scanning systems organized by surface, weld, pipe, blade and accessory applications.

• R1 / R4 roller scanners for composite and smooth-surface inspection
• R3-D / R3-S weld scanners, R20-D / R20-S small-diameter chain scanners
• R21 / R22 compact rod and TOFD scanner options
• R23 / R29 / R30 / R61 / Chain Scanner pipeline scanner options
• R32 / R38 / R39 blade and flexible scanners, plus E01 encoder and R9 couplant feed unit accessories

Warranty: One-year quality warranty from delivery, for factory defect only.

Cable Assemblies

Cables / Cable Assemblies

Cables configured for probes, scanners and instrument compatibility. Connectors are configuration options, not sold separately.

• Lemo, BNC, Microdot and MCX termination options
• PU, PVC, woven mesh and high-temperature cables
• Instrument-side matching for major NDT systems

Custom Series

Custom Jobs

Custom probes, wedges, cables and machined parts for inspection requirements that standard catalog items cannot cover.

• Custom wedge geometry
• Special probe and cable configuration
• Machined NDT parts based on drawings or samples
