Industrial Scanner Series

Encoded industrial scanners are organized by inspection application, including composite and smooth-surface scanning, PAUT/TOFD weld scanning, pipe corrosion, pipeline welds, blade inspection and scanner accessories.

Warranty note: TRX provides a one-year quality warranty for scanners from the date of product delivery, for factory defect only. During the warranty period, if a factory defect is confirmed, TRX will be responsible for repair and related costs.

Whatsapp TalkSend Email

Scanner Layout

Select a scanner family.

Click a scanner family to view related models, images and key parameters.

Surface / Composite

Roller Scanner Series

Manual encoded scanners for smooth surface, composite, plate and large-diameter pipe corrosion inspection.

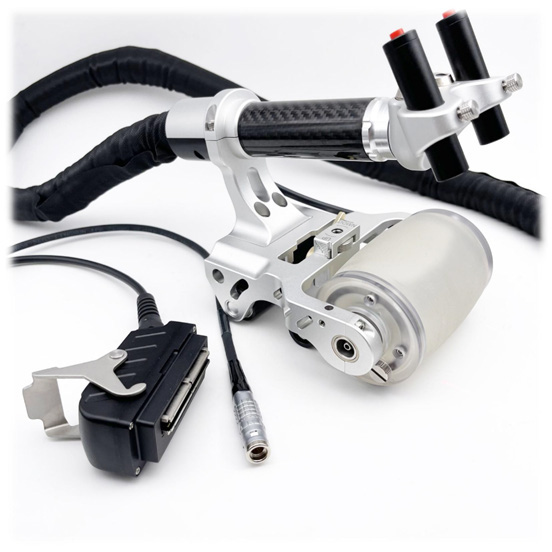

R1 Roller Scanner

R1 Roller Scanner

Wheel scanner for composite and other smooth surface materials.

  • ApplicationComposite, carbon fiber, aerospace panels, plate corrosion and large-diameter pipe axial corrosion.
  • Probe setupReplaceable probe wheel module with array probe and encoder module.
  • Encoder12 step/mm encoder, connector matching for mainstream instruments.

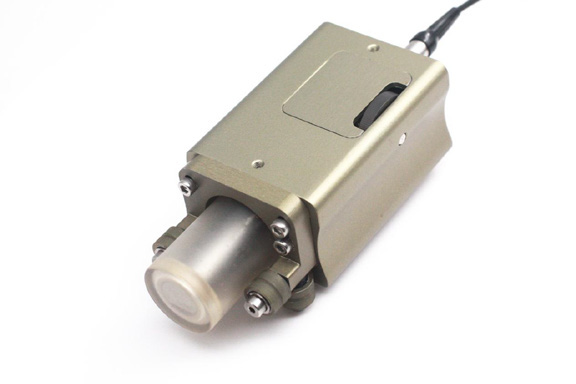

R4 Mini Roller Scanner

R4 Mini Roller Scanner

Handheld mini roller scanner with phased array probe for restricted space work.

  • ApplicationComposite and smooth surface materials in limited and narrow spaces.
  • StructureScanner main module and probe wheel module.
  • AttributesSmall couplant requirement, compact structure and high scanning efficiency.

Weld PAUT / TOFD

Weld Scanner Series

Encoded PAUT and TOFD scanner options for flat butt welds and pipe circumferential welds.

R3-D Double Rod Scanner

R3-D Double Rod

Double-rod PAUT / TOFD weld scanner for plate and pipe weld inspection.

  • ApplicationFlat butt welds and pipe circumferential welds.
  • Probe setupSupports up to 4 probes with removable clamping arms.
  • AttributesEncoder scanning, adjustable walking wheel spacing and wedge size adaptability.

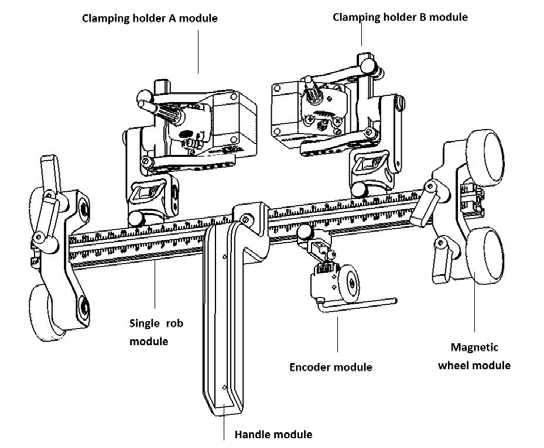

R3-S Single Rod Scanner

R3-S Single Rod

Single-rod version for smaller or simpler weld inspection layouts.

  • ApplicationFlat butt welds and pipe circumferential welds.
  • Probe setupSupports up to 2 probes.
  • AttributesQuick disassembly, easy installation and adjustable wheel spacing.

Product Detail

R61 Flexi Scanner

Hand-operated magnetic wheel scanner for nondestructive inspection on pipeline welds and flat plate welds, with PA and TOFD probe mounting support.

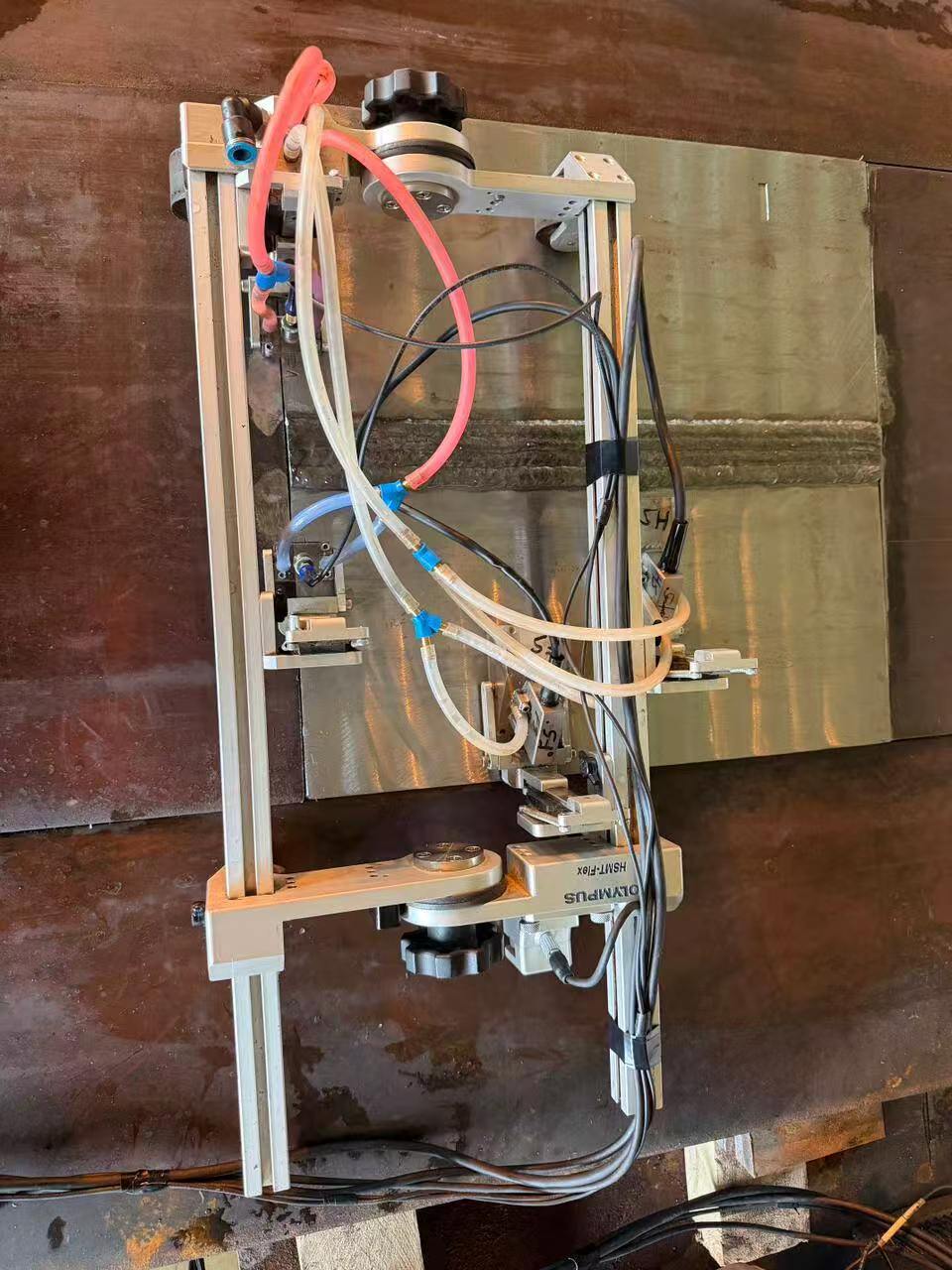

R61 Flexi Scanner product image

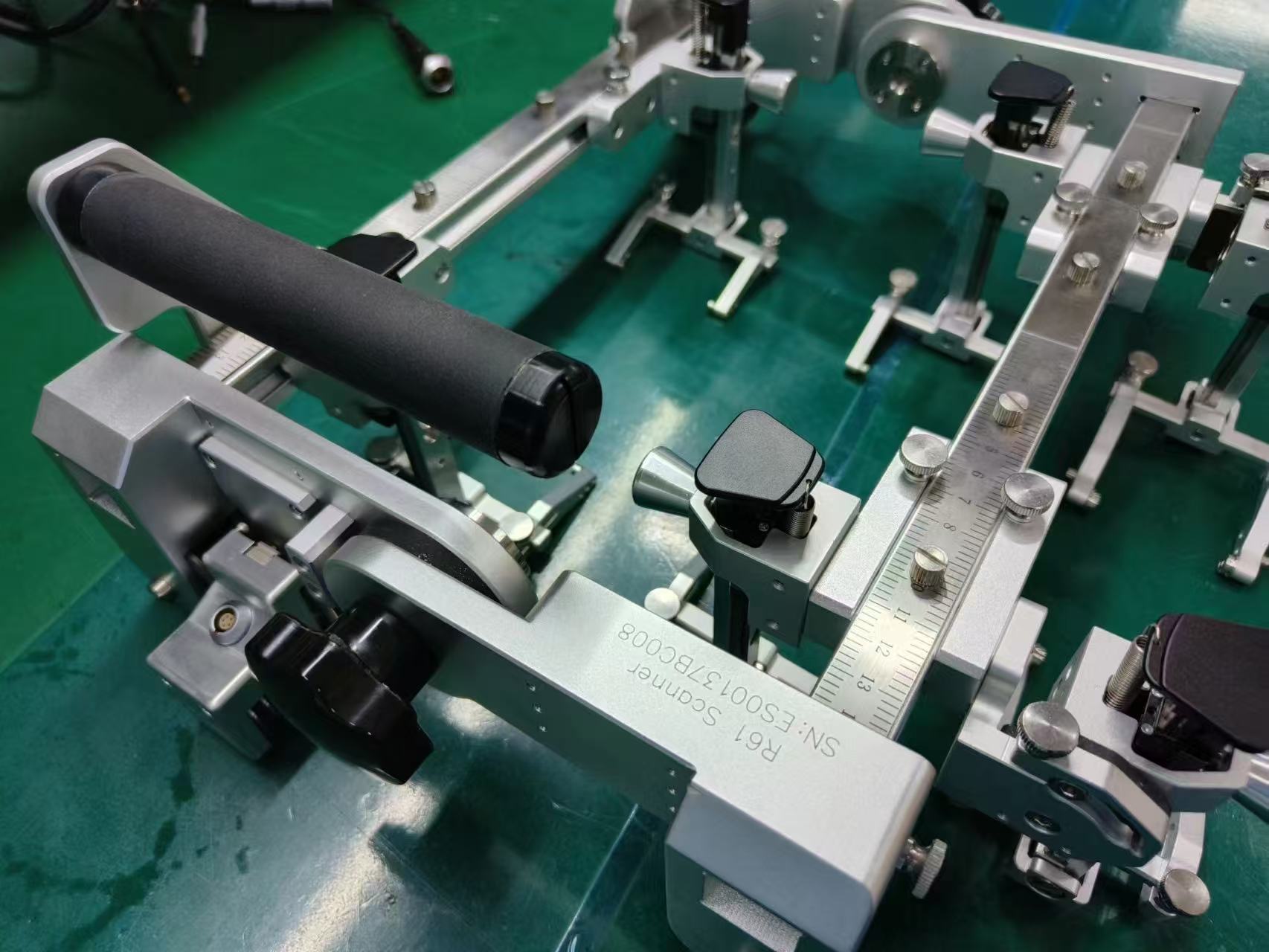

R61 Flexi Scanner

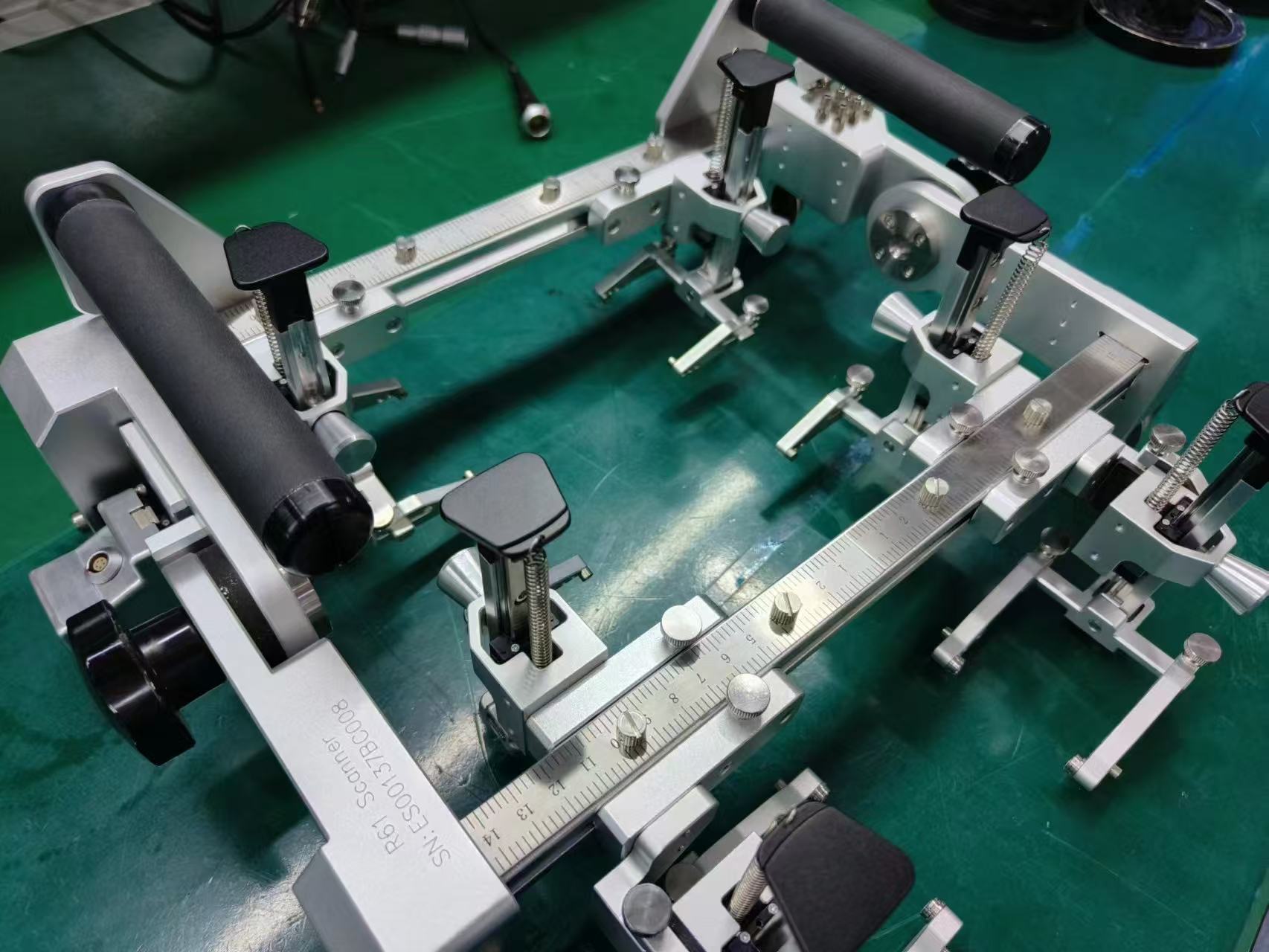

R61 is a magnetic-wheel scanner designed for industrial and commercial nondestructive inspection materials. It is operated by hand and can be configured for PA / TOFD scanning according to the workpiece requirement.

  • ApplicationPipeline welds, flat plate welds and pipe-wall coupling applications.

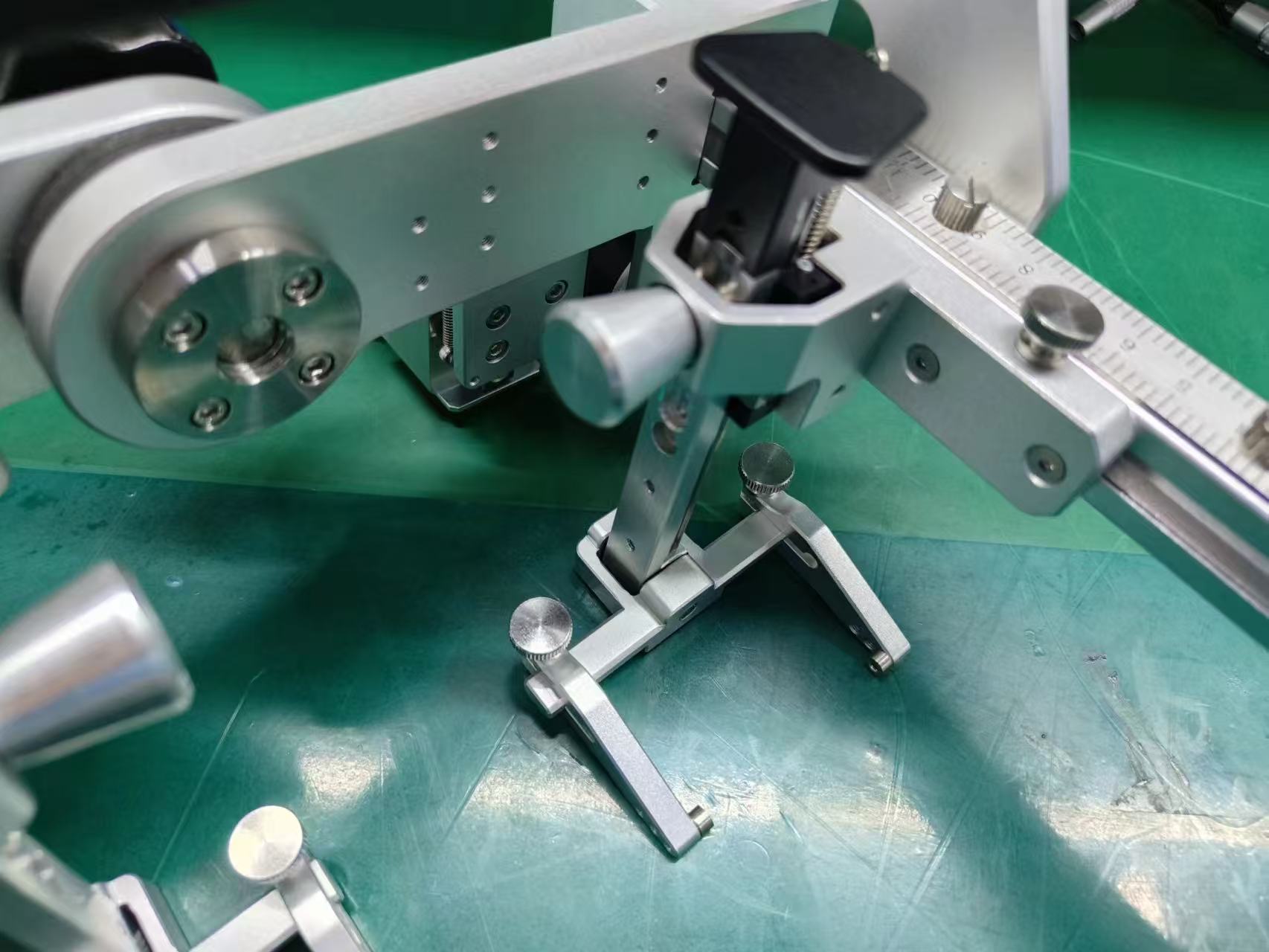

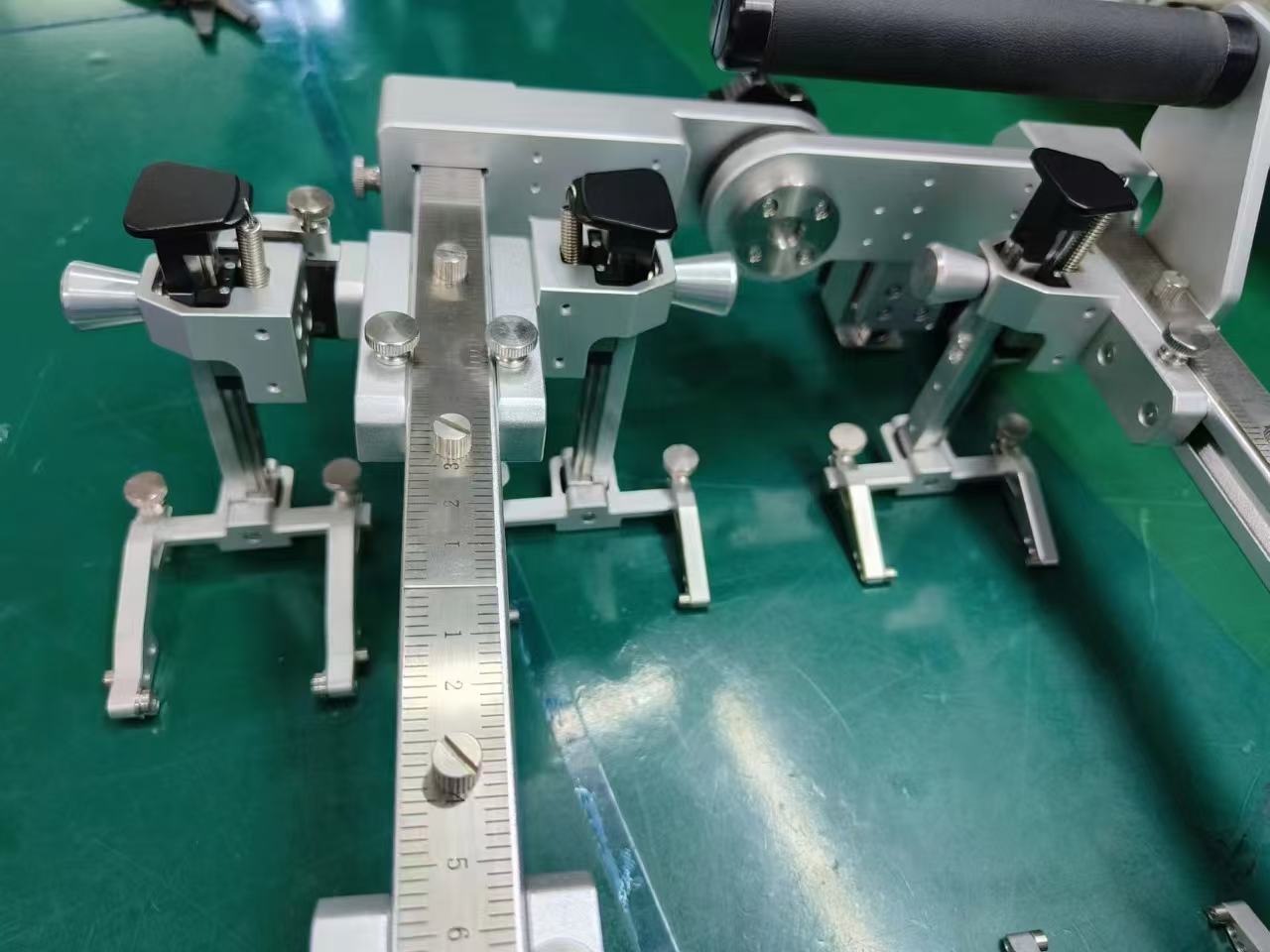

  • Probe setupStandard configuration includes 6 clamping brackets: 4 TOFD clamping brackets and 2 PA clamping brackets.
  • StructureDouble rod bracket, PA clamping bracket, TOFD clamping bracket, encoder and clamping bracket angle adjustment module.
  • Flexible designThe bracket can bend around the middle knob to help probe coupling on thinner pipe diameters.
  • Small pipe useWhen pipe diameter is less than 305 mm, the outermost probe holders can use angle adjustment modules.
  • IncludedR61 scanner 1 set, 500 mm rod brackets 2 pcs, 249 mm scale plates 4 pcs and clamping arm crossbeam B 6 pcs.
  • ConsumablesPU water pipe 5 m, silicone hose 6 m, quick connectors and hand screws.
  • Selection dataSend pipe diameter, weld type, probe type, wedge size, encoder connector and instrument model for matching.
Whatsapp TalkSend Email

Corrosion / Pipe

Pipe Corrosion Scanner Series

Compact and flexible scanner layouts for pipe wall thickness, bend-pipe corrosion and tight-space inspection.

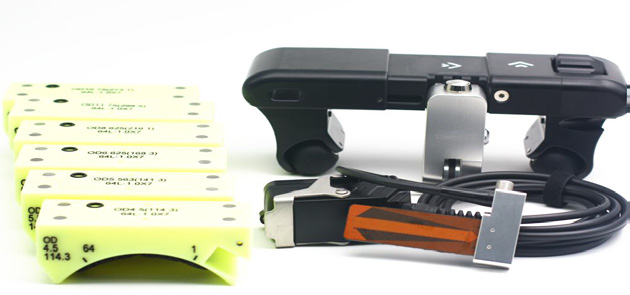

R5 Bend Pipe Corrosion Scanner

R5 Bend Pipe Corrosion Scanner

Scanner for pipe and elbow inner wall corrosion inspection.

  • ApplicationFast wall thickness measurement on elbows and pipes.
  • Probe setupFlexible probe inserted into water wedge block.
  • AttributesReplaceable water wedges for different pipe diameters; same probe and scanner can cover a pipe diameter range.

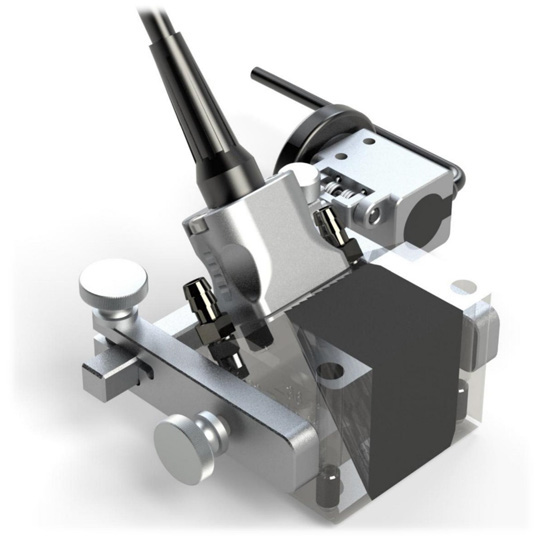

R6 Micro Scanner

R6 Micro Scanner

Compact scanner for tight-space weld and corrosion inspection.

  • ApplicationSingle PA probe recording on pipeline welds and flat welds.
  • EncoderCompatible with E01 encoder and 90 degree encoder direction change.
  • AttributesAdjustable clamping width up to 58 mm, customizable for wider clamping.

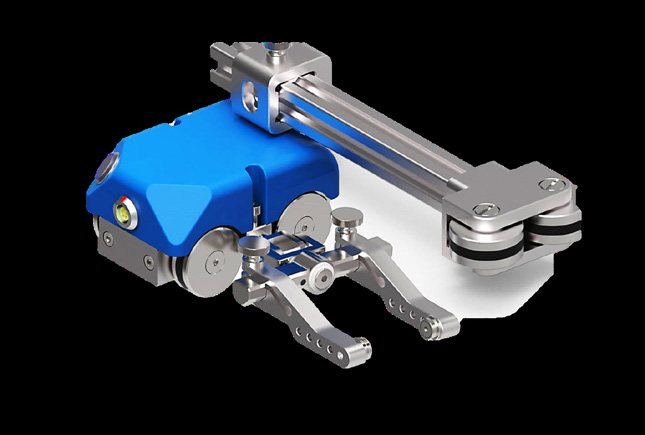

R13 Micro Mouse Scanner

R13 Micro Mouse Scanner

Magnetic wheel scanner for pipeline weld seams and plate weld seams.

  • ApplicationPipeline weld and flat plate weld inspection.
  • StructureMain scanner module, clamping head module and optional sliding rod module.
  • AttributesCompact, light structure with adjustable fork clamp.

Pipeline / Chain

Small Diameter Weld Scanner Series

Small-diameter chain and compact TOFD scanner options for narrow detection spaces and pipe weld inspection.

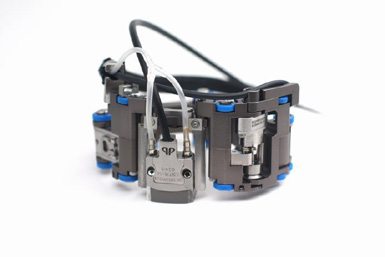

R20 chain scanner

R20-D / R20-S

Double-chain and single-chain scanners for small diameter pipe welds.

  • ApplicationNarrow detection space and small pipe diameter inspection.
  • Pipe range0.84 inch to 4.5 inch diameter pipe, D21.3-D114 mm.
  • Basic dimensionsA 54 mm (2.1 in), B 110 mm (4.3 in), C 11 mm (0.43 in), D 140-222 mm (5.5-8.7 in) depending on cross bar selection.
  • Cross bars37 mm, 69 mm, 94 mm and 119 mm cross bars support scanner width options of 139.6, 164.6, 189.6 and 214.6 mm.
  • Probe spacingProbe width references: 24.4, 49.4, 74.4 and 99.4 mm according to selected cross bar.
  • R20-DDouble chain, can install two probes with adjustable probe spacing.
  • R20-SSingle chain for lighter configurations.
  • Package contentsChain modules, roller chain modules, long / short lock blocks, Torx screwdriver, hexagon screwdriver, cross screwdriver and draw hook. R20-D also includes 69, 94 and 119 mm cross bars.

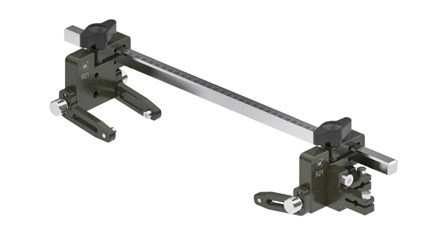

R21 Micro Rod Scanner

R21 Micro Rod Scanner

Lightweight rod scanner for pipeline welds and flat plate welds.

  • Probe setupCan install two TOFD probes with adjustable position on support rod.
  • StructureRod bracket and TOFD clamping frame modules.
  • AttributesDifferent rod support sizes can be selected according to working condition.

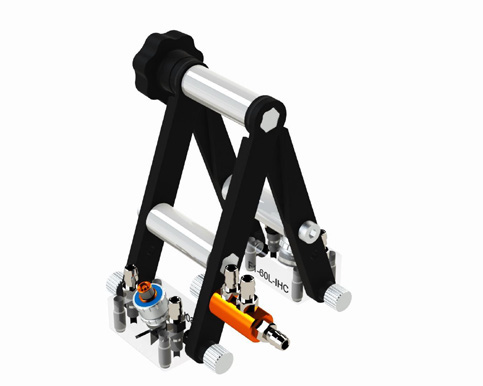

R22 TOFD Micro Scanner

R22 TOFD Micro Scanner

Handheld TOFD scanner for pipeline and plate weld inspection.

  • ApplicationTOFD probe detection for pipe and plate welds.
  • RangeProbe center distance detection range: 19-156 mm.
  • AttributesMain support angle adjustable from 14 degrees to 290 degrees; customizable clamping width.

Pipeline

Pipeline Scanner Series

Pipeline scanner support for automatic and manual pipeline weld inspection, field inspection and PA / TOFD probe positioning.

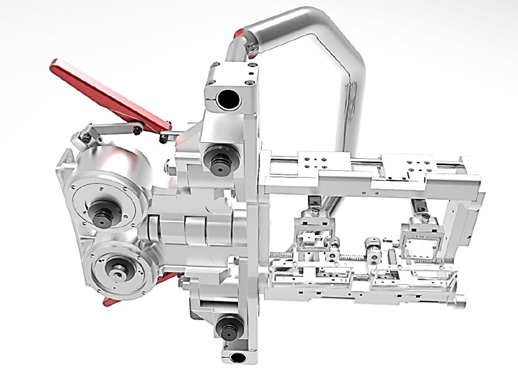

R30 Pipeline Scanner

R30 Pipeline Scanner

Electric scanner for automatic pipeline girth weld inspection.

  • ApplicationPipeline ring seam scanning.
  • Pipe rangeCurvature adjustable for approximately 12 to 45 inch pipe diameter.
  • Probe setupCan install up to four probes, with guide rod position adjustment.

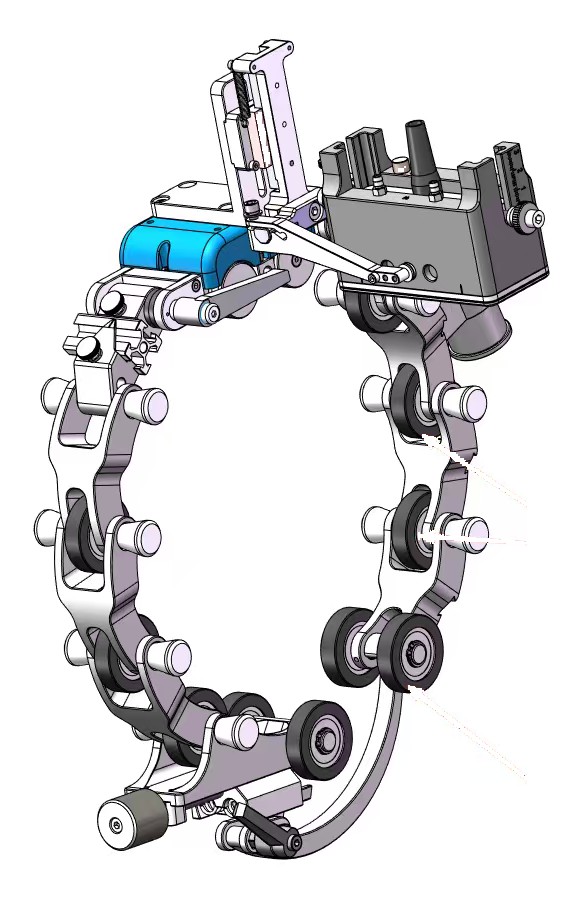

Chain Scanner

Chain Scanner

Large-diameter single-chain manual scanner for pipe weld inspection.

  • ApplicationManual PAUT, TOFD and pulse-echo inspection for pipe welds and pipe defects.
  • Pipe rangeStandard configuration supports 8-50 inch pipe diameter, adjusted by chain module quantity.
  • Probe setupStandard TOFD and PA clamping heads with 20-60 mm adjustable clamping width.
  • EncoderIntegrated scanning car encoder, 5 V supply, 25 mA max current and 14.4 steps/mm resolution.

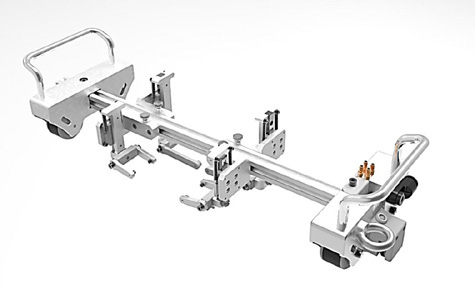

R23 Rod Scanner

R23 Rod Scanner

Magnetic wheel rod scanner for PAUT / TOFD weld inspection.

  • ApplicationPipeline welds and flat plate welds.
  • Probe setupCan install up to four probes on the bracket rod.
  • Rod sizesStandard rod support lengths include 250 mm, 450 mm and 650 mm.

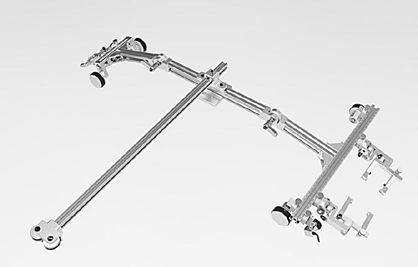

R29 Variable Diameter Rod Scanner

R29 Variable Diameter Rod Scanner

Scanner for flange pipe crack detection with curvature adjustment.

  • ApplicationLongitudinal and circular crack detection on flange pipelines.
  • Pipe rangeCurvature adjustable for approximately 1 m to 2 m flange pipe diameter.
  • Probe setupCan install up to three probes; PA, TOFD and pulse-echo workflows supported.
R61 Flexi Scanner

R61 Flexi Scanner

Hand-operated magnetic wheel scanner for pipeline welds, flat plate welds and PA / TOFD inspection setups.

  • ApplicationPipeline welds, flat plate welds and pipe-wall coupling applications.
  • Probe setupStandard configuration includes 6 clamping brackets: 4 TOFD clamping brackets and 2 PA clamping brackets.
  • StructureDouble rod bracket, PA clamping bracket, TOFD clamping bracket, encoder and clamping bracket angle adjustment module.
  • Flexible designThe bracket can bend around the middle knob to help probe coupling on thinner pipe diameters.

Blade / Flexible

Blade and Flexible Scanner Series

Flexible scanner options for wind turbine blades, special surfaces and complex geometric inspection.

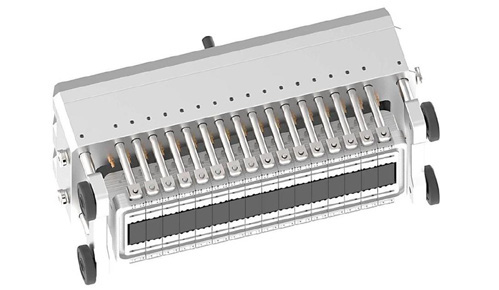

R32 Blade Flexible Scanner

R32 Blade Flexible Scanner

Flexible scanner for wind turbine blade defect inspection.

  • ApplicationWind turbine blade body, rubber layer and flange-surface defect detection.
  • Probe setupSegmented flexible probe adapts to different curvature surfaces.
  • AttributesStable water layer thickness, stainless steel ball contact and water recovery support.
R38 Wind Turbine Blade Scanner

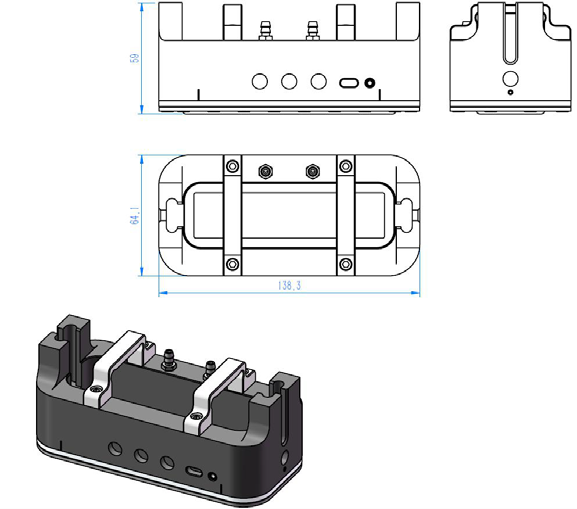

R38 Wind Turbine Blade Scanner

Wind power blade inspection support based on customized wind power detection probe and semi-water scanning rack module.

  • ApplicationWind turbine blade and composite structure inspection.
  • SupportCan be matched with customized wind power detection probe and semi-water scanning rack module.
  • Inquiry dataBlade structure, surface curvature, probe type and water supply requirement.

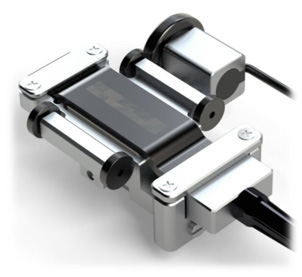

R39 Flexible Probe Scanner

R39 Flexible Probe Scanner

Flexible phased array probe scanner using water as coupling medium.

  • ApplicationPipe and steel corrosion inspection, internal pipe inspection and complex geometric parts.
  • AttributesFlexible probe bends to fit workpiece surface, axial thickness around 3-4 mm.
  • EncoderSupports encoder scanning and customized flexible probe orders.

Accessories

Encoder and Couplant Series

Scanner accessories for encoded position feedback, couplant supply and instrument matching.

E01 Encoder

E01 Encoder

Encoder module for encoded scanner inspection.

  • StructureStainless steel silent bearing structure with elastic support coding wheel.
  • MountingM3 threaded holes and 3 mm pin shaft locking.
  • UseSupports reliable scanner position feedback and 90 degree angle scanning conversion.

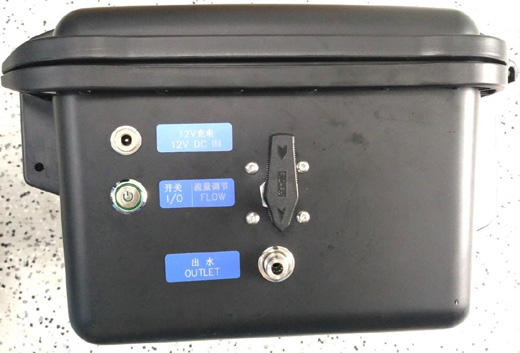

R9 Couplant Feed Unit

R9 Couplant Feed Unit

Portable couplant supply unit for scanner inspection.

  • FunctionIntegrated filter, quiet motor, air pressure diaphragm pump and flow control device.
  • FittingsOD12 mm inlet, OD6 mm outlet and OD3 mm outlet pipe fittings referenced in catalog.
  • UseAutomatic couplant supply matching scan requirements.
