X-Ray Equipment

High Frequency

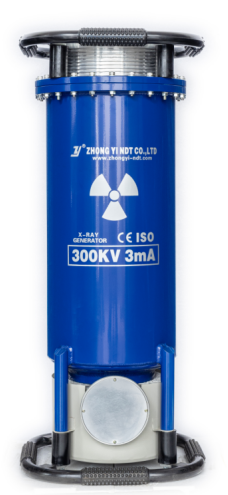

High-frequency X-ray Flaw Detector

Constant-voltage high-frequency radiographic testing system for stable output, digital control and DR static imaging workflows. Suitable for weld, casting, pressure vessel and heavy fabrication inspection.

High-voltage generator and digital controller design for stable exposure quality.
Adjustable tube current supports different material thickness and image requirements.
Designed for industrial radiographic inspection in workshop or field environments.

ModelsZY-220HP / ZY-300HP

Voltage60-220 kV / 100-300 kV

Current1.0-3.0 mA adjustable

PenetrationA3 steel up to 32 mm / 50 mm

Use caseDR imaging, weld inspection, casting inspection and pressure vessel testing

Model	Beam Angle	Tube Voltage	Focus Size	Tube Current	Working Time	Penetration
ZY-220HP	Directional 40 deg	60-220 kV	1.2 x 1.2 mm	1.0-3.0 mA adjustable	0-20 min	A3 steel up to 32 mm
ZY-300HP	Directional 40 deg	100-300 kV	2.5 x 2.5 mm	1.0-3.0 mA adjustable	0-30 min	A3 steel up to 50 mm

Model

Beam Angle

Tube Voltage

Focus Size

Tube Current

Working Time

Penetration

ZY-220HP

Directional 40 deg

60-220 kV

1.2 x 1.2 mm

1.0-3.0 mA adjustable

0-20 min

A3 steel up to 32 mm

ZY-300HP

Directional 40 deg

100-300 kV

2.5 x 2.5 mm

1.0-3.0 mA adjustable

0-30 min

A3 steel up to 50 mm

Model	Angle	Voltage	Current	Focus Size	Generator Size	Weight
ZY-2003	Directional 40 deg	50-200 kV	3 mA	2.0 x 2.0 mm	210 x 210 x 580 mm	14 kg
ZY-2503	Directional 40 deg	80-250 kV	3 mA	2.0 x 2.0 mm	230 x 230 x 630 mm	18 kg
ZY-2503HA	Panoramic 360 x 30 deg	80-250 kV	3 mA	1.0 x 2.5 mm	230 x 230 x 680 mm	19 kg
ZY-3003	Directional 40 deg	130-300 kV	3 mA	2.5 x 2.5 mm	250 x 250 x 656 mm	24 kg
ZY-3003HA	Panoramic 360 x 30 deg	130-300 kV	3 mA	1.0 x 3.5 mm	250 x 250 x 735 mm	24 kg

Model

Angle

Voltage

Current

Focus Size

Generator Size

Weight

ZY-2003

Directional 40 deg

50-200 kV

3 mA

2.0 x 2.0 mm

210 x 210 x 580 mm

14 kg

ZY-2503

Directional 40 deg

80-250 kV

3 mA

2.0 x 2.0 mm

230 x 230 x 630 mm

18 kg

ZY-2503HA

Panoramic 360 x 30 deg

80-250 kV

3 mA

1.0 x 2.5 mm

230 x 230 x 680 mm

19 kg

ZY-3003

Directional 40 deg

130-300 kV

3 mA

2.5 x 2.5 mm

250 x 250 x 656 mm

24 kg

ZY-3003HA

Panoramic 360 x 30 deg

130-300 kV

3 mA

1.0 x 3.5 mm

250 x 250 x 735 mm

24 kg

Model	Class	Angle	Voltage	Capacity	Focus Size	Max Penetration	Generator Size / Weight
XXQ-1005	Glass tube directional	40 deg	40-100 kV	1.0 kW	1.0 x 1.0 mm	8 mm	160 x 180 x 540 mm / 10 kg
XXQ-1605	Glass tube directional	40 deg	35-160 kV	1.5 kW	1.5 x 1.5 mm	20 mm	220 x 220 x 630 mm / 16 kg
XXQ-2005	Glass tube directional	40 deg	50-200 kV	2.5 kW	1.5 x 1.5 mm	30 mm	280 x 280 x 680 mm / 24 kg
XXQ-2505	Glass tube directional	40 deg	80-250 kV	2.5 kW	2.0 x 2.0 mm	40 mm	320 x 320 x 750 mm / 35 kg
XXQ-3005	Glass tube directional	40 deg	130-300 kV	3.0 kW	2.5 x 2.5 mm	50 mm	340 x 340 x 840 mm / 41 kg

Model

Class

Angle

Voltage

Capacity

Focus Size

Max Penetration

Generator Size / Weight

XXQ-1005

Glass tube directional

40 deg

40-100 kV

1.0 kW

1.0 x 1.0 mm

8 mm

160 x 180 x 540 mm / 10 kg

XXQ-1605

Glass tube directional

40 deg

35-160 kV

1.5 kW

1.5 x 1.5 mm

20 mm

220 x 220 x 630 mm / 16 kg

XXQ-2005

Glass tube directional

40 deg

50-200 kV

2.5 kW

1.5 x 1.5 mm

30 mm

280 x 280 x 680 mm / 24 kg

XXQ-2505

Glass tube directional

40 deg

80-250 kV

2.5 kW

2.0 x 2.0 mm

40 mm

320 x 320 x 750 mm / 35 kg

XXQ-3005

Glass tube directional

40 deg

130-300 kV

3.0 kW

2.5 x 2.5 mm

50 mm

340 x 340 x 840 mm / 41 kg

Model	Beam Angle	Tube Type	Voltage	Focus Size	Generator Size	Weight
ZY-3005	40 + 5 deg	Directional ceramic tube	130-300 kV	2.5 x 2.5 mm	270 x 270 x 705 mm	28 kg
ZY-3005HA	360 x 30 deg	Panoramic ceramic tube	130-300 kV	1.0 x 3.5 mm	270 x 270 x 750 mm	27 kg
ZY-3505	40 + 5 deg	Directional ceramic tube	200-350 kV	2.5 x 2.5 mm	320 x 320 x 650 mm	31 kg

Model

Beam Angle

Tube Type

Voltage

Focus Size

Generator Size

Weight

ZY-3005

40 + 5 deg

Directional ceramic tube

130-300 kV

2.5 x 2.5 mm

270 x 270 x 705 mm

28 kg

ZY-3005HA

360 x 30 deg

Panoramic ceramic tube

130-300 kV

1.0 x 3.5 mm

270 x 270 x 750 mm

27 kg

ZY-3505

40 + 5 deg

Directional ceramic tube

200-350 kV

2.5 x 2.5 mm

320 x 320 x 650 mm

31 kg

Model	Pipe OD	Crawler Size	Position Precision	Distance	Speed	Battery / Weight
ZY-4C	219-406 mm	1280 x 174 x 150 mm	+/- 5 mm	5 km round trip	8 m/min	7 Ah lead-acid / 28 kg
ZY-3C	323-900 mm	1250 x 217 x 180 mm	+/- 5 mm	5 km round trip	13 m/min	7 Ah / 12 Ah lead-acid, 28 / 44 kg
ZY-12C	355-1400 mm	1030 x 182 x 190 mm	+/- 5 mm	5 km round trip	15 m/min	20 Ah lithium / 16 kg
ZY-10C	508-1500 mm	1170 x 244 x 230 mm	+/- 5 mm	5 km round trip	15 m/min	17 Ah lead-acid / 63 kg

Model

Pipe OD

Crawler Size

Position Precision

Distance

Speed

Battery / Weight

ZY-4C

219-406 mm

1280 x 174 x 150 mm

+/- 5 mm

5 km round trip

8 m/min

7 Ah lead-acid / 28 kg

ZY-3C

323-900 mm

1250 x 217 x 180 mm

+/- 5 mm

5 km round trip

13 m/min

7 Ah / 12 Ah lead-acid, 28 / 44 kg

ZY-12C

355-1400 mm

1030 x 182 x 190 mm

+/- 5 mm

5 km round trip

15 m/min

20 Ah lithium / 16 kg

ZY-10C

508-1500 mm

1170 x 244 x 230 mm

+/- 5 mm

5 km round trip

15 m/min

17 Ah lead-acid / 63 kg

Model	Pipe OD	Crawler Size	Locating System	Precision	Microwave Distance	Configuration
ZY-4D	219-406 mm	1280 x 174 x 150 mm	Wireless video + magnetic control	+/- 5 mm	1 km	Crawler, video controller, magnetic controller, receiver, generator, battery pack
ZY-3D	323-900 mm	1250 x 217 x 180 mm	Wireless video + magnetic control	+/- 5 mm	1 km	Crawler, video controller, magnetic controller, receiver, generator, battery pack
ZY-12D	355-1400 mm	1030 x 182 x 190 mm	Wireless video + magnetic control	+/- 5 mm	1 km	Crawler, video controller, magnetic controller, receiver, generator, battery pack
ZY-10D	508-1500 mm	1170 x 244 x 230 mm	Wireless video + magnetic control	+/- 5 mm	1 km	Crawler, video controller, magnetic controller, receiver, generator, battery pack

Model

Pipe OD

Crawler Size

Locating System

Precision

Microwave Distance

Configuration

ZY-4D

219-406 mm

1280 x 174 x 150 mm

Wireless video + magnetic control

+/- 5 mm

1 km

Crawler, video controller, magnetic controller, receiver, generator, battery pack

ZY-3D

323-900 mm

1250 x 217 x 180 mm

Wireless video + magnetic control

+/- 5 mm

1 km

Crawler, video controller, magnetic controller, receiver, generator, battery pack

ZY-12D

355-1400 mm

1030 x 182 x 190 mm

Wireless video + magnetic control

+/- 5 mm

1 km

Crawler, video controller, magnetic controller, receiver, generator, battery pack

ZY-10D

508-1500 mm

1170 x 244 x 230 mm

Wireless video + magnetic control

+/- 5 mm

1 km

Crawler, video controller, magnetic controller, receiver, generator, battery pack

High-frequency X-ray Flaw Detector

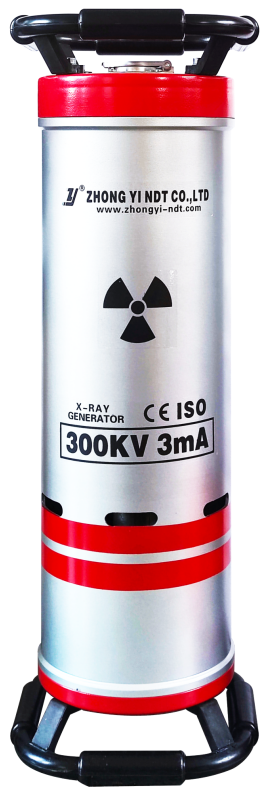

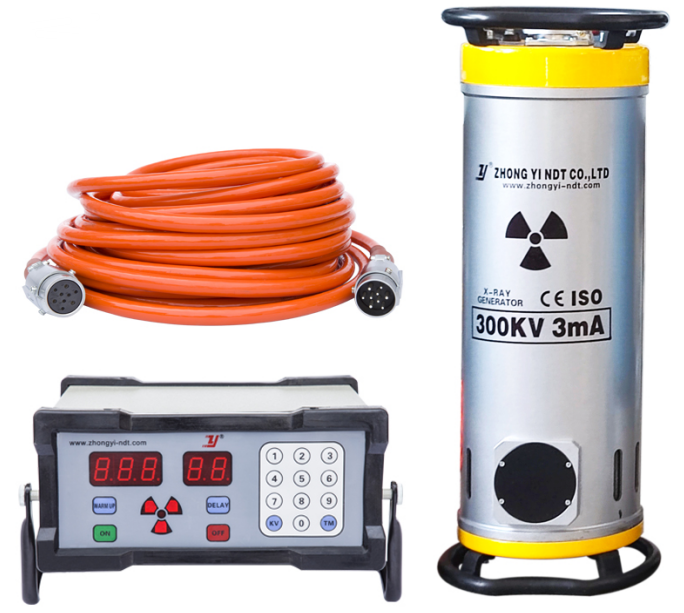

Mini Portable X-ray Flaw Detector

Portable X-ray NDT Machine

Portable X-ray Flaw Detector

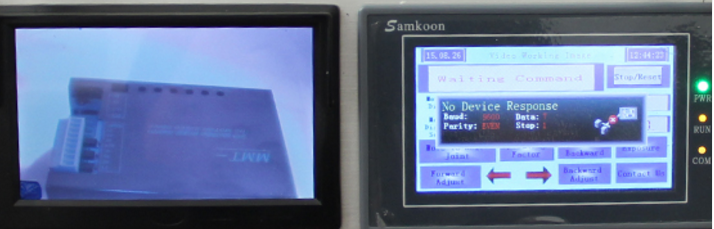

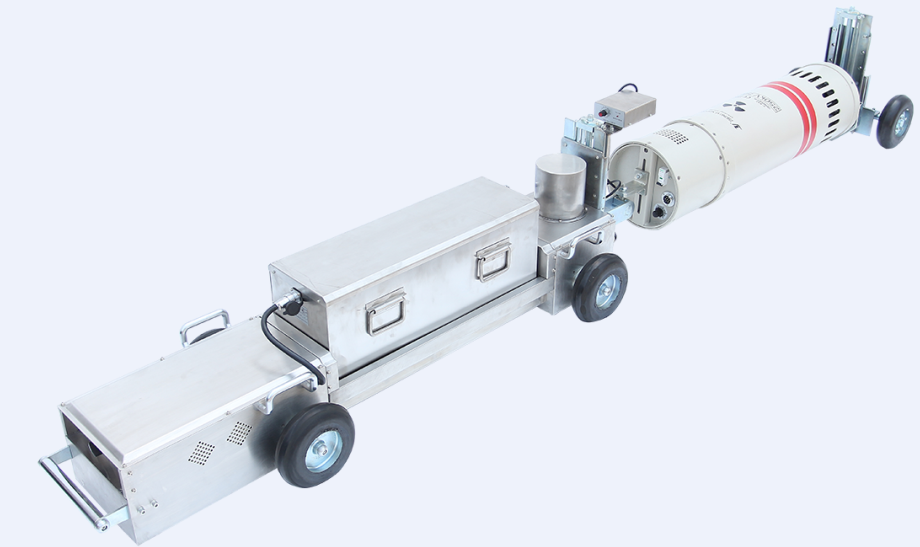

Magnetic Control X-Ray Pipeline Crawler

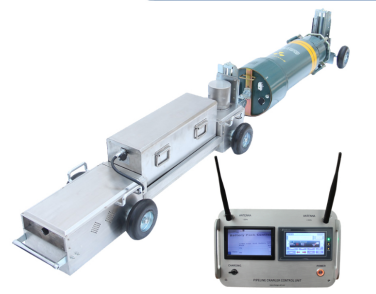

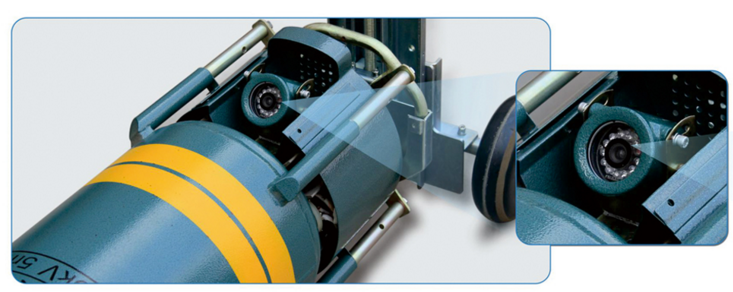

Dual Control X-Ray Pipeline Crawler

Model data extracted from product manuals.

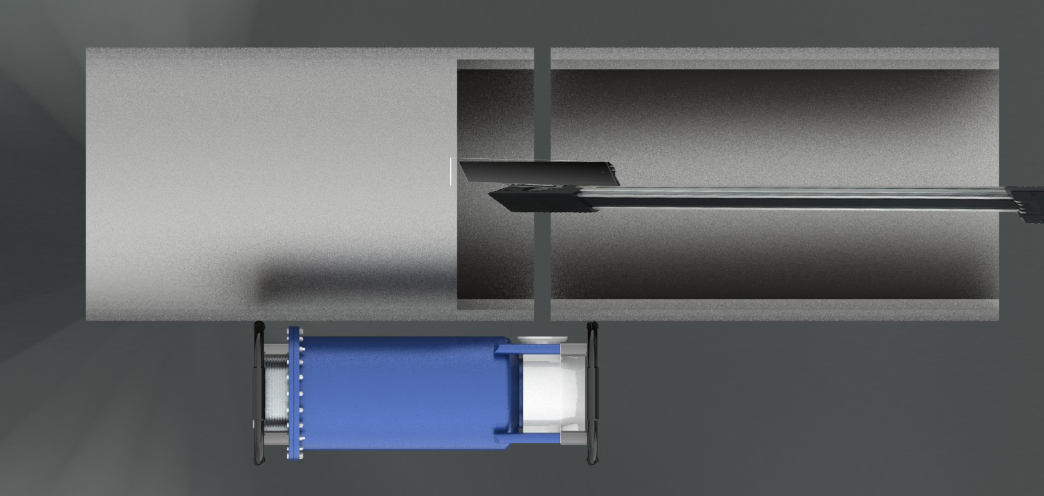

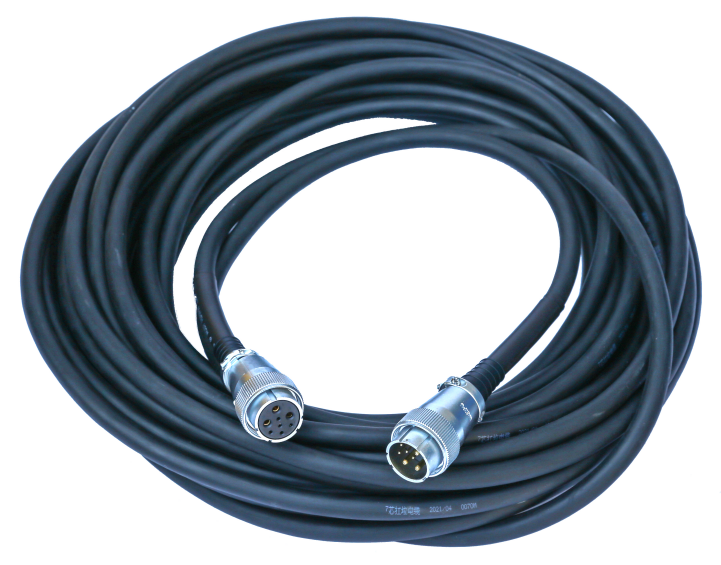

High-frequency X-ray Flaw Detector

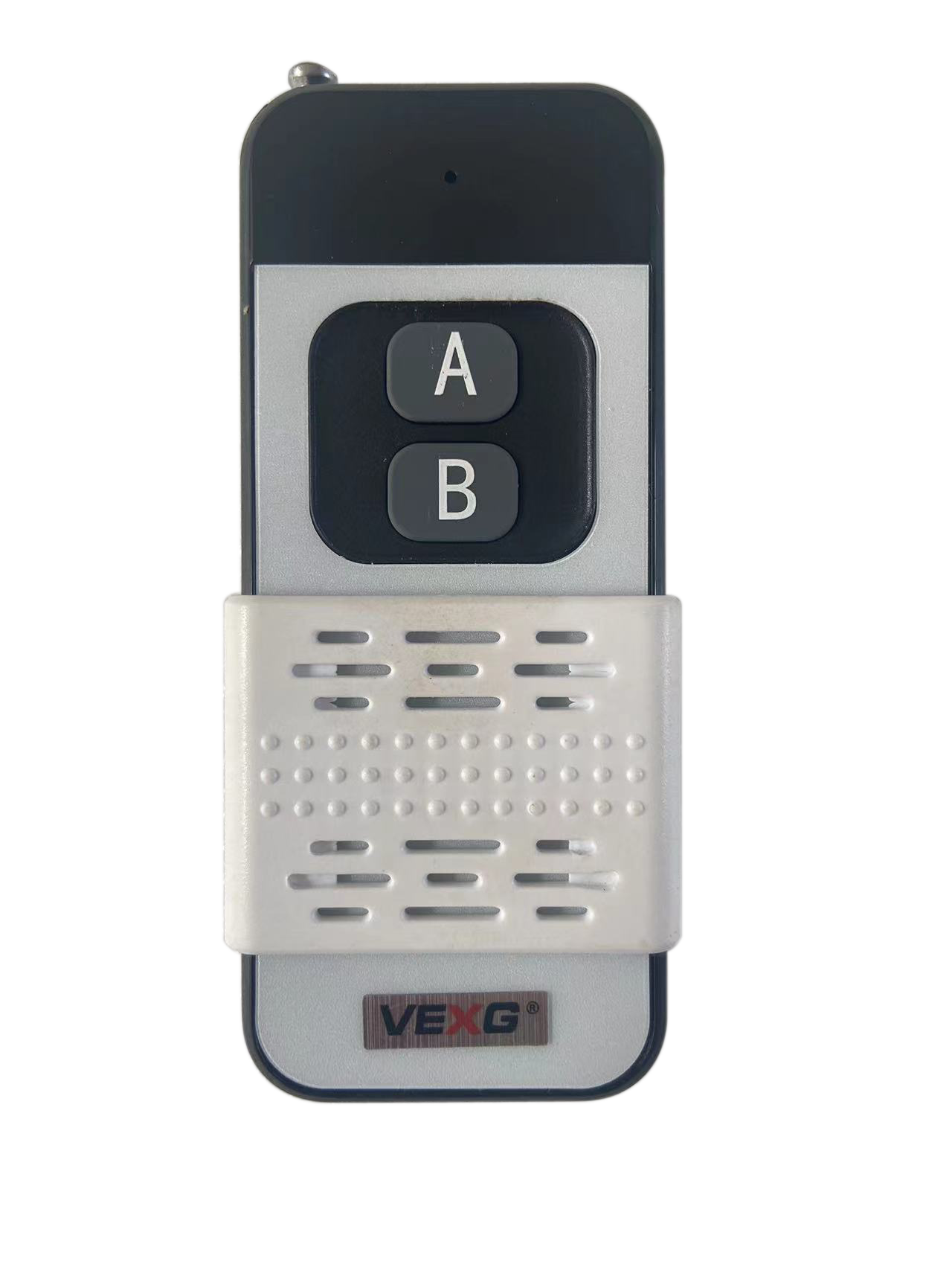

Mini Portable X-ray Flaw Detector

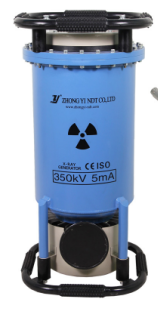

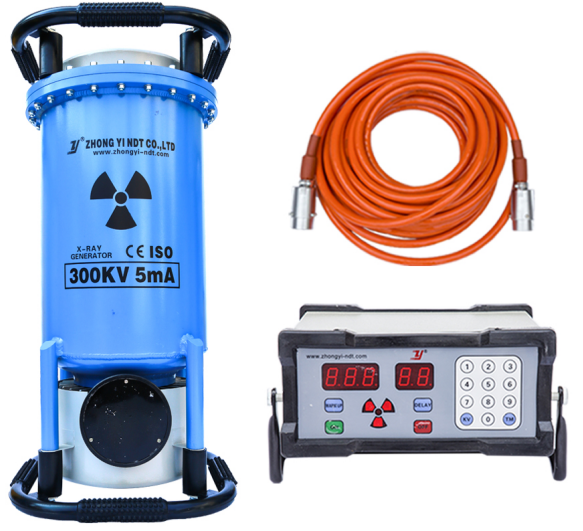

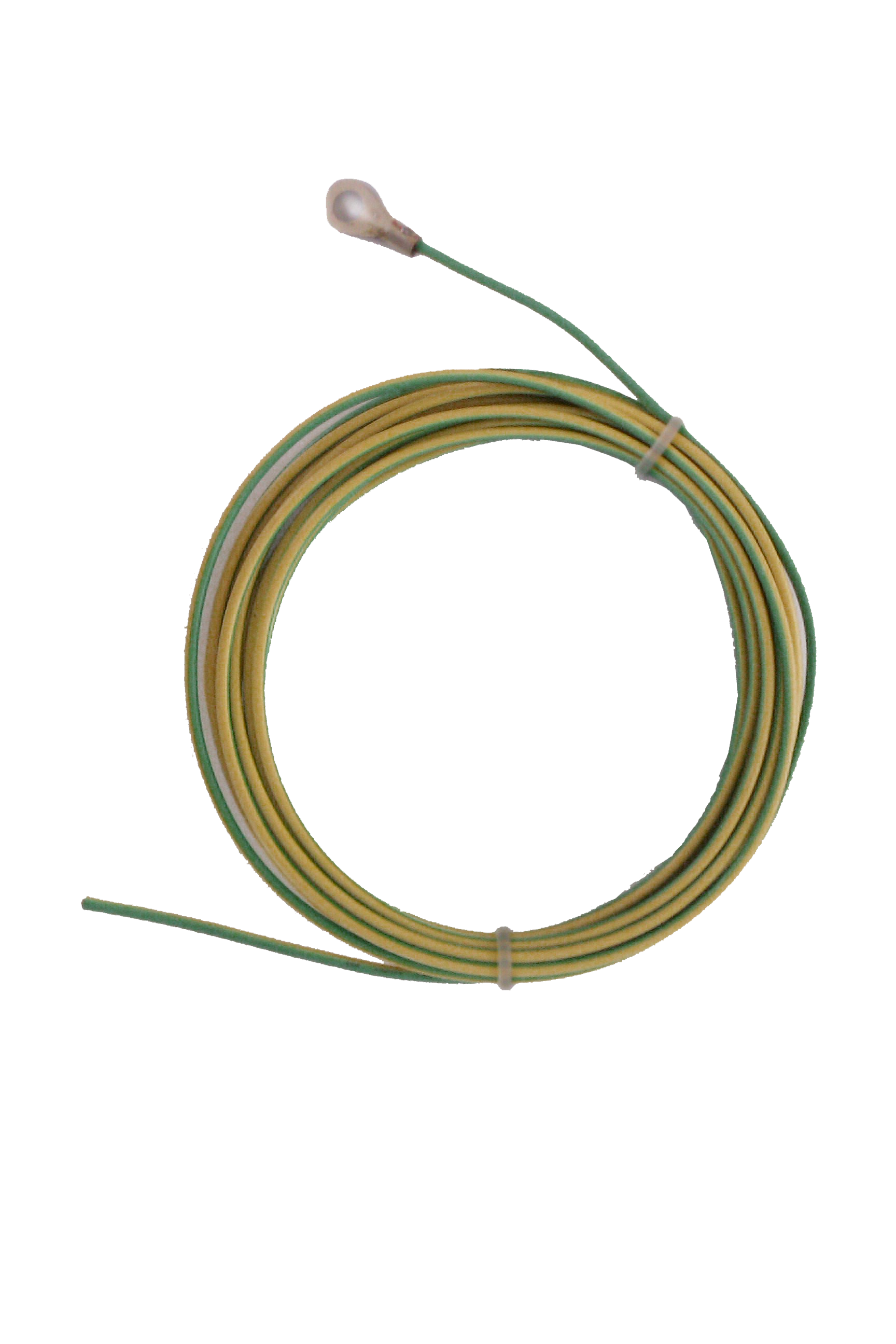

Portable X-ray NDT Machine - 5 min

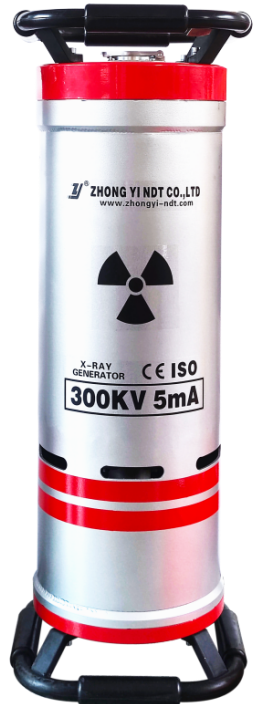

Portable X-ray Flaw Detector - 10 min

Magnetic Control Pipeline Crawler

Dual Control Pipeline Crawler

Send inspection details before quotation.
